rated power：6.5hp operating load:350kg total width：764mm speed：3.3km/h

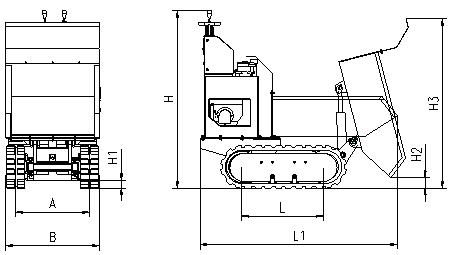

Main Dimension：
|
Max operating height（H） |
1300mm |
51.18 in |
|
Max lifting height（H3） |
1238mm |
48.74 in |
|
Skip Max Dumping height（H2） |
60mm |
2.36 in |
|
Skip Dumping Angle（α） |
80° |
|
|
Wheel base（L） |
620mm |
24.4 in |
|
Total length（L1） |
1498mm |
58.98 in |
|
Ground clearance（H1） |
55mm 2.2 in |
|
|
Tread width ,centerline to centerline（A） |
550mm |
21.65in |
|
Total width（B） |
764mm |
30.08 in |
|
Minimum turn radius R |
912mm |
35.9in |
Technical Parameter：
Engine
Single-cylinder, four-stroke
,air-cooled
Rated power
7KW(8HP) /3600rpm
Maximum torque
23.5N.m/2400 rpm
Noise （Db）
≤80
Hydraulic system
Hydraulic pressure（Mpa）
15
Cycle time(s）
Dumping
Retracting
2.28
1.3
Technical Parameter
Rated loading
350Kg 771.6 Lb
Skip capacity(level)
0.13m3 4.6 ft3
Speed
3.3Km/h 2.05mile/h
Operating weight
420Kg 925.9Lb
