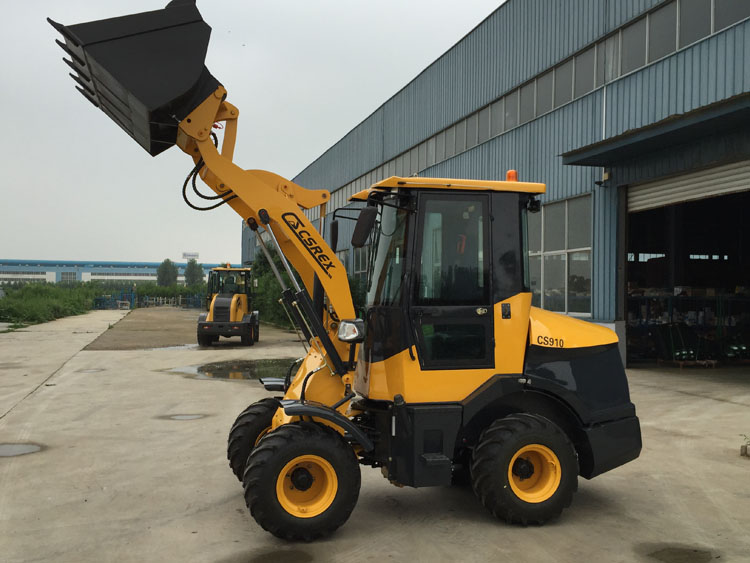

CS910
The current position:Home > Product > By Series > CS910
Patten NO.:

  1. CS910 small wheel loader uses the inline. Direct injection, water-cooled, four-stroke engine with excellent cod start performance. Powerful energy. Reliable function and efficient energy saving.

  2. CS910 small wheel loader Motor is US Eaton. Ensure the good performance.

  3. Full hydraulic drive system. Low consumption drive. Stable and simple operation, 2 gear hydraulic variable speed changes.

  4. The streamline design makes the appearance attractive and modern.

  5. The driving cab uses hardened molding glass with broad view and more safe.

  6. CS910 small wheel loader has flexible link and is equipped with new dashboard and adjustable steering column. Which can reduce vibration and make the operation convenient and comfortable.

  7. CS910 small wheel loader has quick change system. Can change the front part very fast.

  8. Hydraulic brake system, Drum brake.

  9. Manual quick change system. Very easy. One man can operate.

Item

Specification

Item

Specification

Kerb weight

2650kg(CS910J 2750kg)

Max. speed

24km/h

Rated bucket capacity

0.5m³

DRIVE AXLE

Rated load

1000kg

Main transmission type

Spiral gear, first stage deceleration

Max. tractive force

20kN

TYRE

Max. breakout force

20kN

Type specification

10.0-16.5

Max. gradeability

30%

Optional

12.0-16.5; 31*15.5-15

Max. dumping height

2262mm

STEERING SYSTEM

Dumping distance

741mm

Type

Articulated load-sensing hydraulic steering system

Overall dimension(L*W*H)


4113*1520*2323mm
4199*1520*2418mm(CS910J)


Steering angle

32°each side

ENGINE

Min. turning radius

3879mm

Model

B490BT1

HYDRAULIC SYSTEM

Type

Inline, direct injection, water cooling

System working pressure

22MPa

Rated power

32.4kW

Lifting time

4s

Optional

Yanmar EuroIII

Total time

9s

Rated power

25.2 kW

BRAKE SYSTEM

Displacement

2.19L

Service brake

Mechanical internal expanding shoe-type

TRANSMISSION SYSTEM

Parking brake

Manual internal expanding shoe-type

Hydrostatic transmission

Invariable pump, variable motor

FILL CAPACITY

Type of gear box

Axis-fixed, double reduction

Fuel

17L

Gear shift

2 forward shift, 2 reverse shift

Hydraulic oil

23L
